Deer Park EV Charger Installation | Zappi 7kW Solar-Ready Charger for BYD Seal
Completed in Deer Park, this residential EV charger installation included supply and installation of a Zappi 7kW single-phase charger for a BYD Seal Premium, with a dedicated EV circuit, required protection, CT clamp setup for solar readiness, testing, commissioning and Certificate of Electrical Safety.
Project Overview
This Deer Park installation was a clean residential EV charger setup with the switchboard located at the front of the home and the charger installed in the garage.
The client wanted a charger that would work well for daily home charging but also remain suitable once solar was added later. For that reason, the Zappi was selected as the preferred option because it is designed for solar-aware charging and can support CT monitoring / solar-ready configuration.
The installation was completed as a standard residential setup with a short cable run, clear access, dedicated circuit protection, charger commissioning and final testing.
Project Snapshot
Location: Deer Park, VIC
Property type: Residential
Vehicle: BYD Seal Premium
Charger installed: Zappi 7kW single-phase EV charger
Installation location: Garage
Switchboard location: Front of house
Cable run: Approx. 5-10 metres
Key site factor: Future solar readiness
Protection: Dedicated EV circuit and required circuit protection
Monitoring: CT clamp / Zappi monitoring setup where practical
Outcome: Completed solar-ready garage charging setup with testing, commissioning and Certificate of Electrical Safety.
What the Client Needed
The client needed a home EV charging solution for a BYD Seal Premium and wanted the setup to be ready for a future solar system.
A basic charger would have worked for standard charging, but it would not have been the best long-term fit given the customer’s plan to add solar. The better approach was to install a charger that could support a solar-aware setup later, while still operating properly as a normal 7kW home charger from day one.
The installation also needed to be completed efficiently, with the charger positioned neatly in the garage and the circuit run from the existing switchboard at the front of the property.
What We Installed
This project included:
Supply and installation of a Zappi 7kW single-phase EV charger

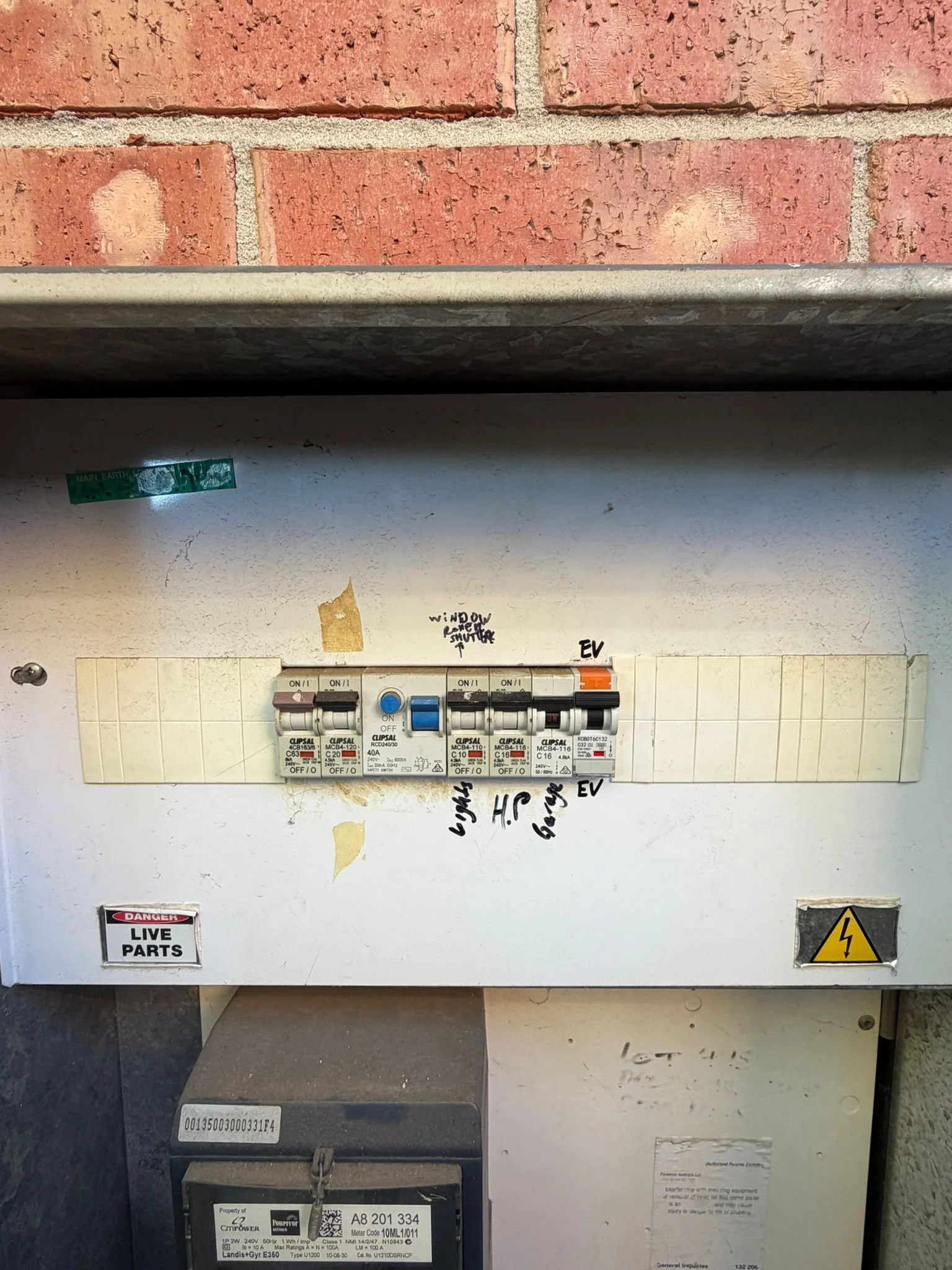

Dedicated EV charging circuit from the existing switchboard
Required circuit protection
Standard cable run from switchboard to garage charger location
Charger mounting on the garage wall
CT clamp / monitoring setup where practical

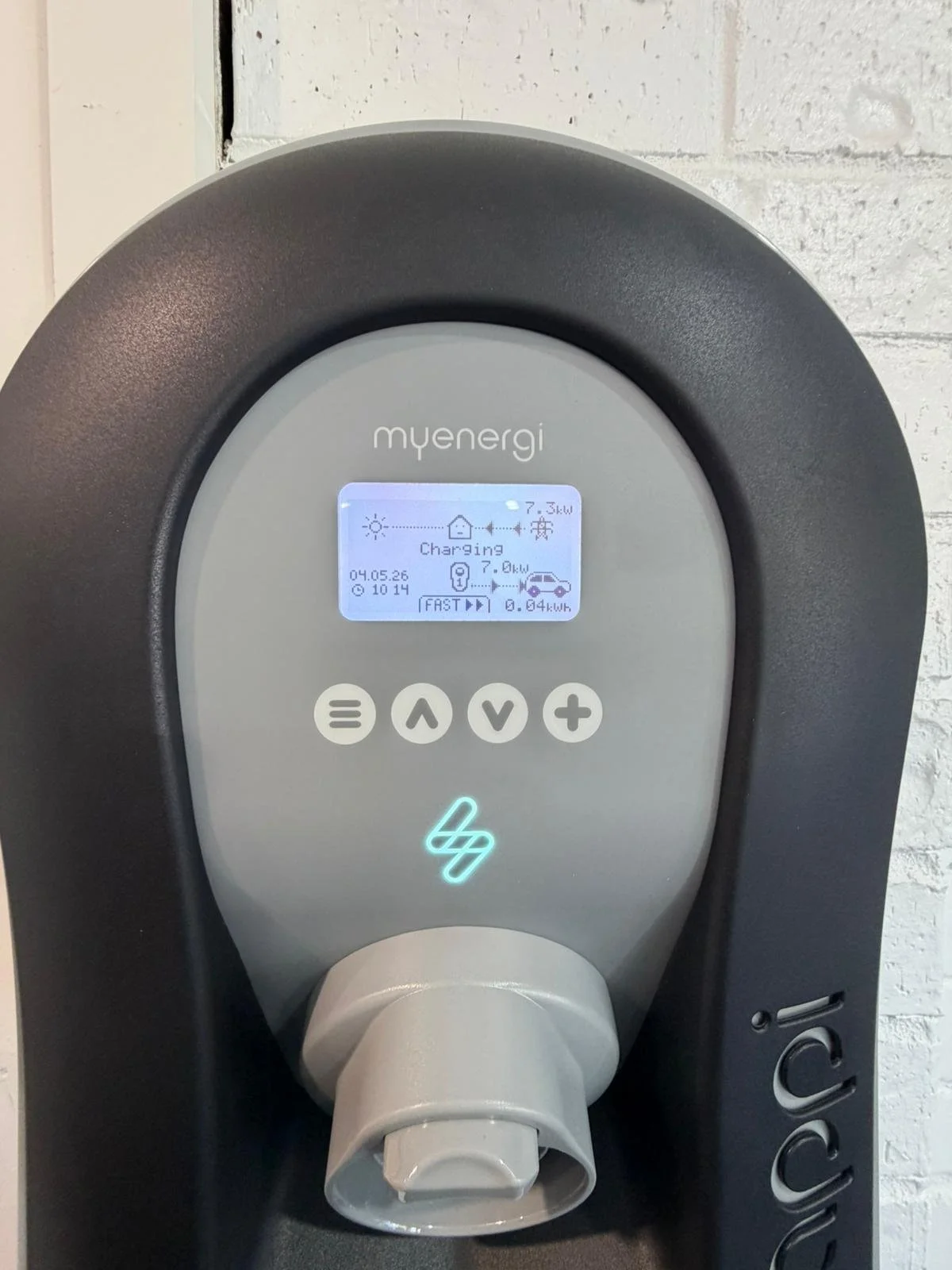

Basic Zappi configuration and commissioning
Testing and verification of the EV charging circuit
Certificate of Electrical Safety
The charger was installed as a solar-ready setup, meaning it can operate as a standard EV charger now while being positioned for future solar integration when the client installs solar.
Why This Setup Worked Well
This setup worked well because it matched both the client’s current and future needs.
For daily charging, the Zappi provides a reliable 7kW home charging solution suitable for the BYD Seal Premium. For future energy use, the charger is designed to support solar-aware charging once the solar system is installed and configured.
The short cable run and clear garage access allowed for a clean installation, while the dedicated circuit and protection ensured the charger was installed properly for continuous EV charging use.
This is the right way to approach EV charging when solar is planned: install the right charger now, complete the electrical work properly, and avoid needing to replace the system later.
The Outcome

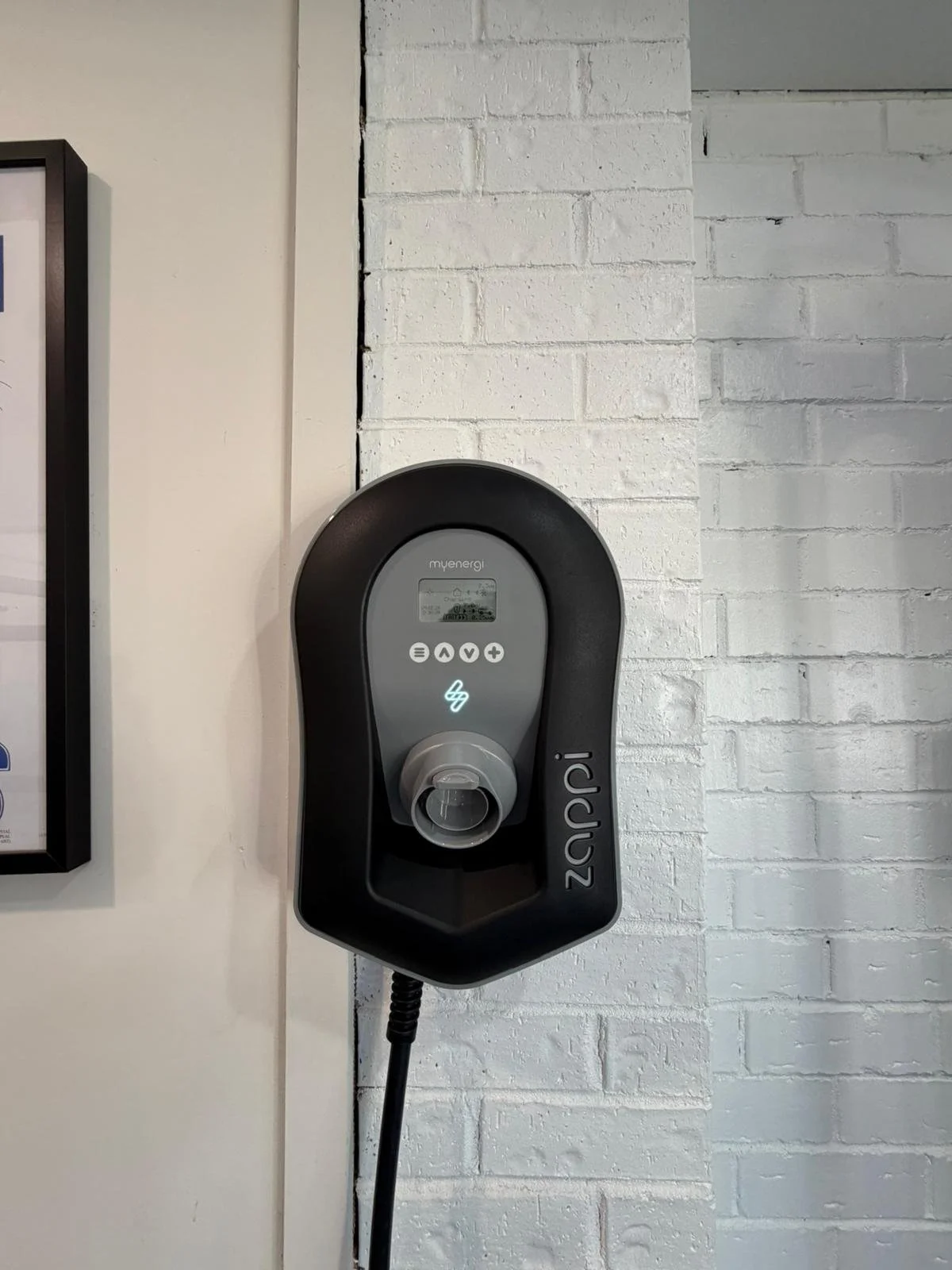

The finished result was a clean residential EV charger installation in Deer Park, with the Zappi mounted neatly in the garage and commissioned for use.
The client now has a dedicated home charging setup for the BYD Seal Premium, with the system prepared for future solar integration where practical.
